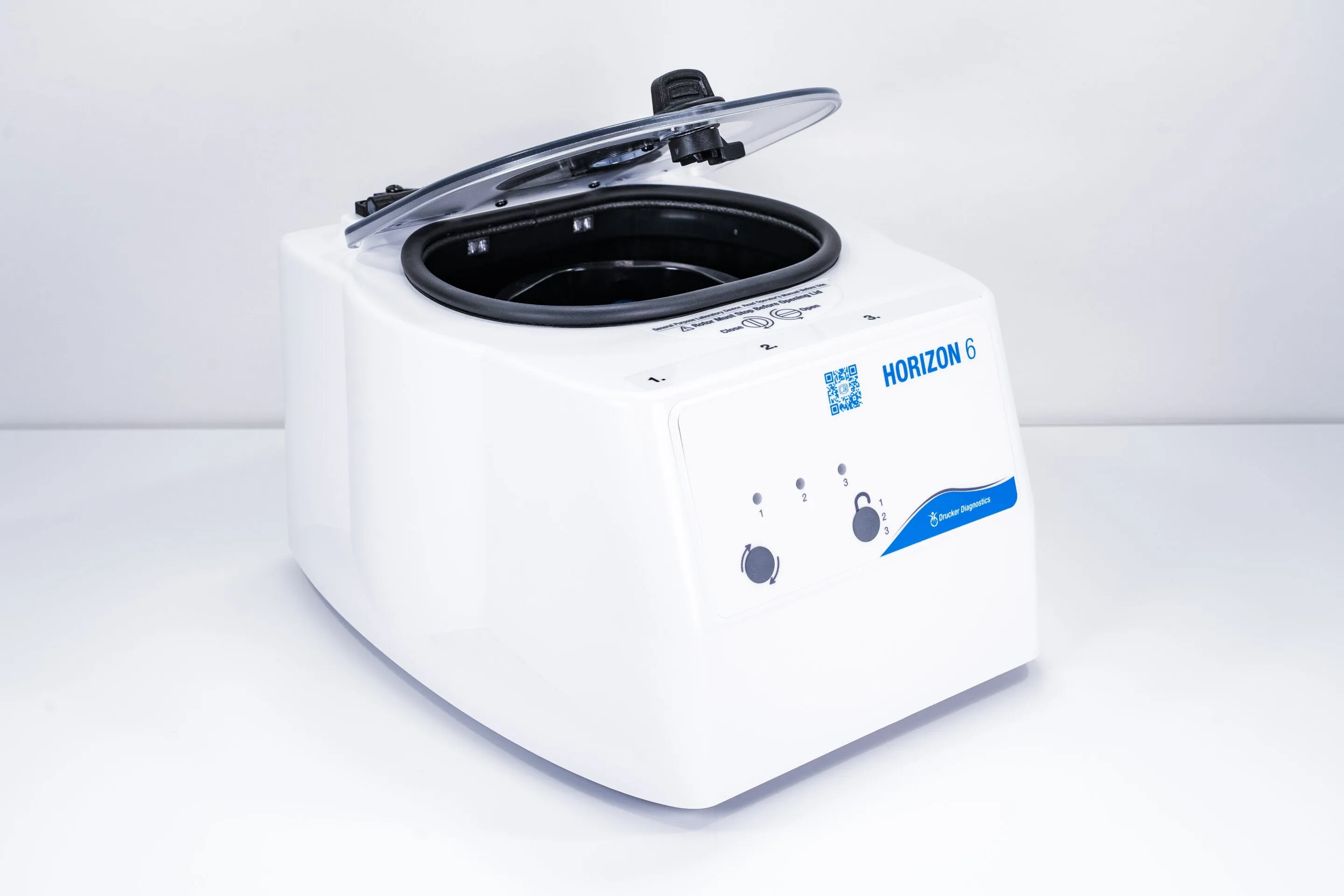

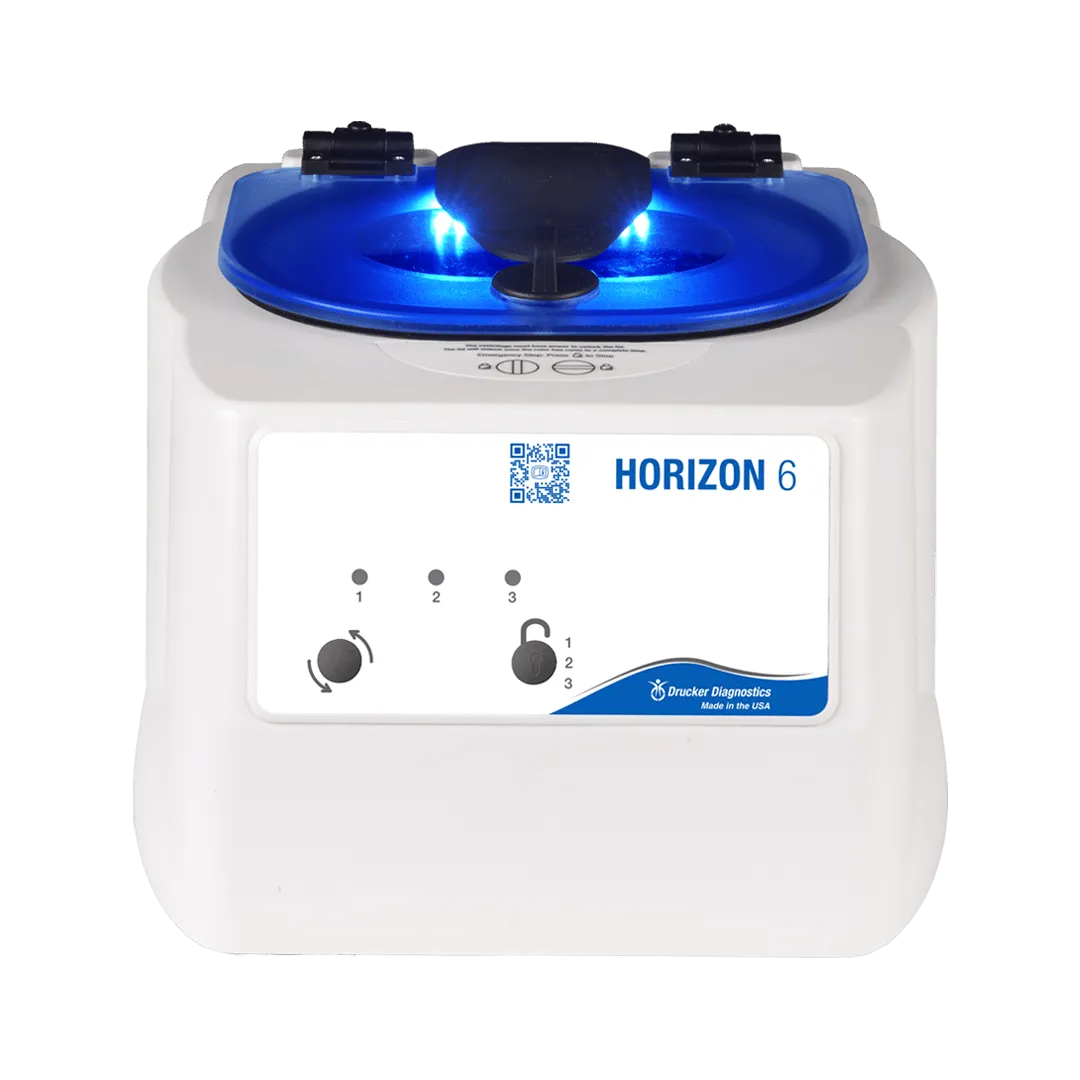

The HORIZON 6 routine centrifuge enhances blood and urine specimen handling efficiency. With a compact design and six-tube capacity, it suits lab and point-of-care facilities. Featuring a user-friendly interface, users can program cycles or select from three presets. Vibrant LED lid lighting provides clear status updates throughout the cycle. Available in horizontal and fixed-angle models, catering to diverse lab needs.
Features
- Max Capacity – 6 (up to 16 x 100 mm or 10 mL)
- Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
- Set and Lock Controls – The two-button interface allows users to select a cycle, or lock to a single cycle with the press of a button
- Intuitive Lid Lighting – No more forgotten samples! Lid lights flash at the end of each cycle and continue flashing until the lid is opened
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning

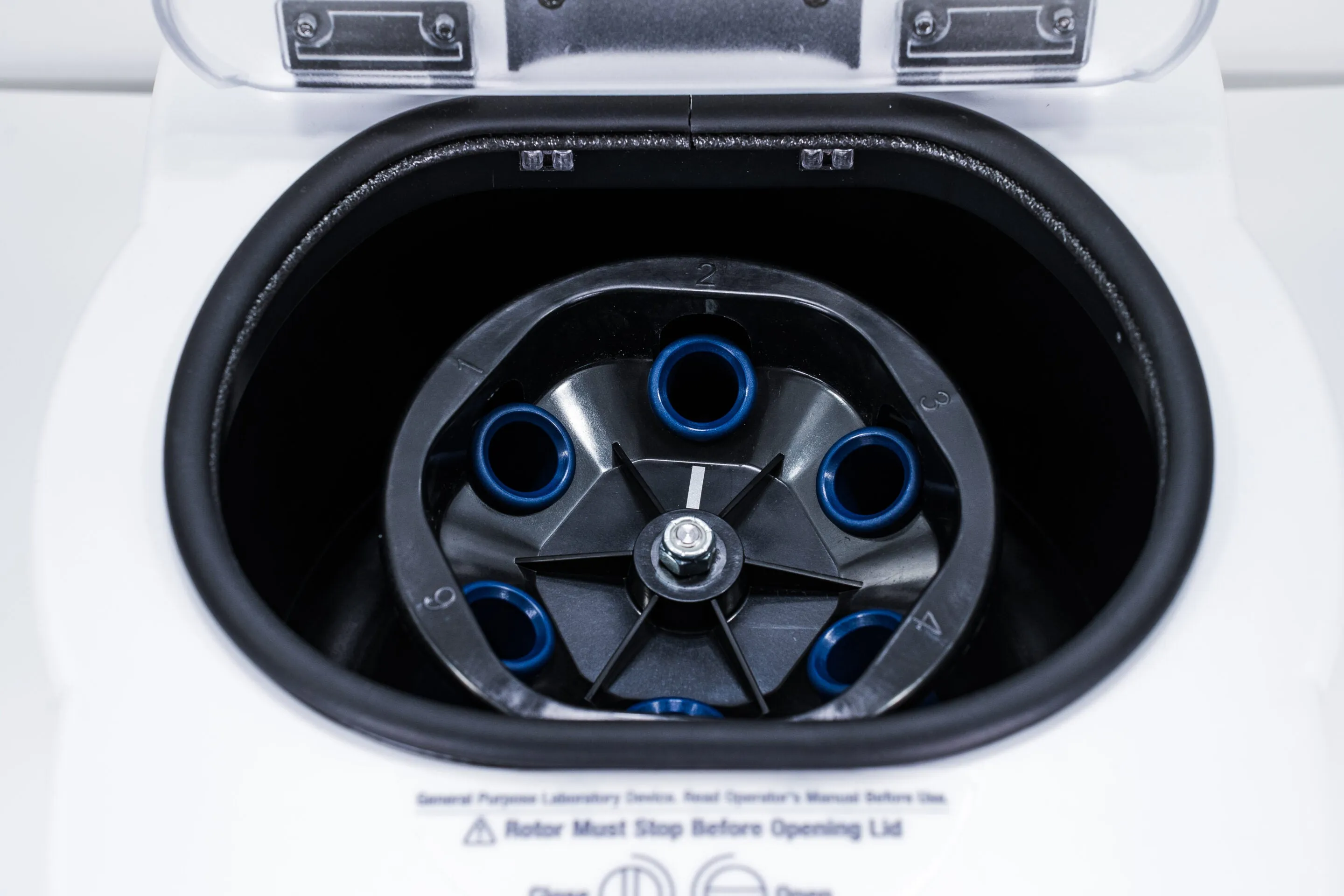

- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Brushless DC Motor – Years of operation with no routine maintenance
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 64 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions (W x D x H) - 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight - 12 lbs. (5.4 kg)
- Max. Acceleration Time - 20 Seconds
- Max. Deceleration Time - 20 Seconds
- Factory Setting Range - 1 to 30 Minutes (± 1%)
- Voltage - 95 to 253 VAC
- Frequency - 50/60 Hz
- Max. Power Requirements - 220 Watts
Preset Cycles
Preset 1: 10 min / 3600 RPM / 1800 xg
Preset 2: 15 min / 3300 RPM / 1500 xg
Preset 3: 5 min / 1900 RPM / 500 xg
Warranty
2 years (lifetime on rotor)
