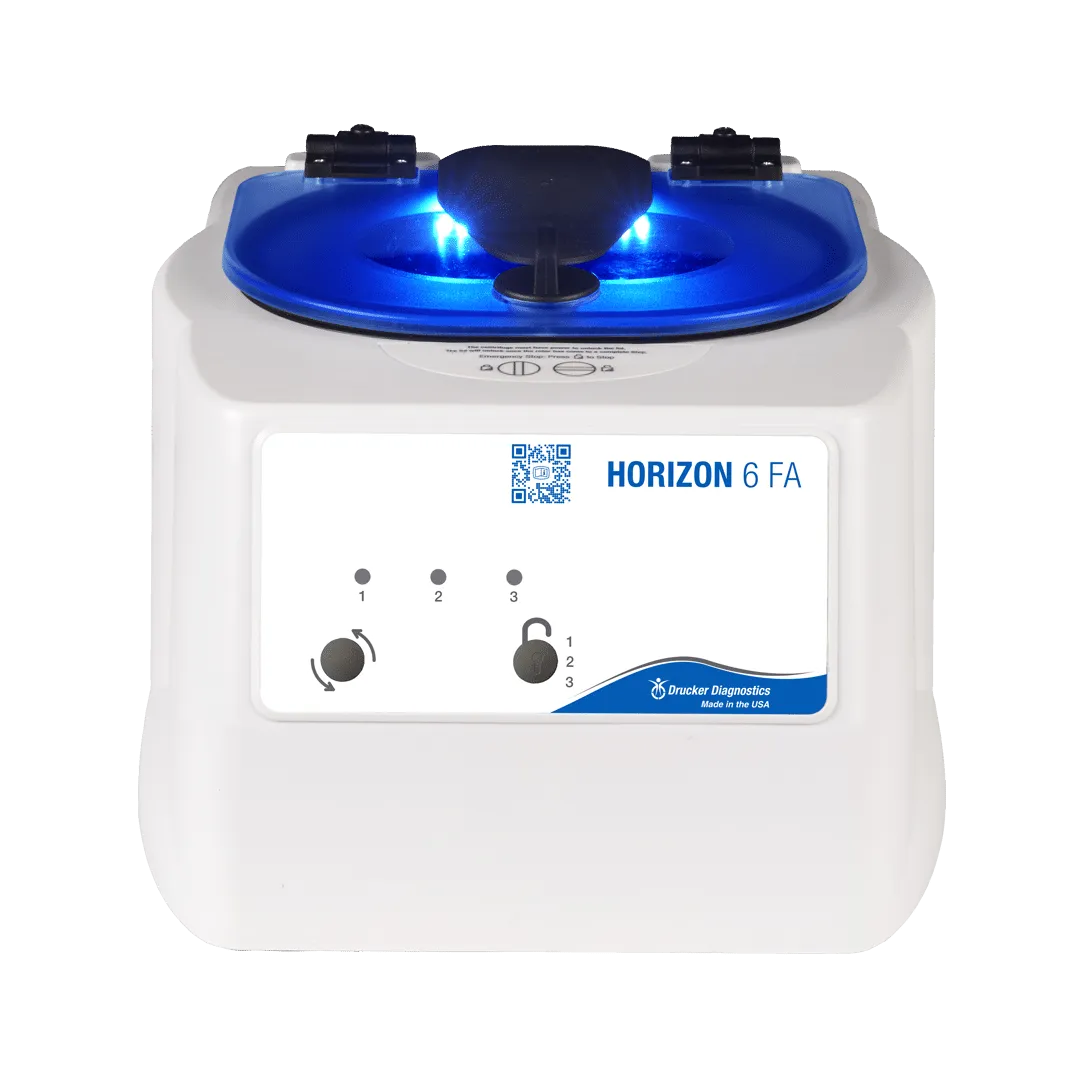

Explore the HORIZON 6 FA routine centrifuge, ideal for fixed-angle processing like PRP and urine analysis. With an intuitive interface, customize settings or choose from three preset cycles. Its illuminated lid lighting provides clear status updates, ensuring operational clarity. Accommodating various standard blood and urine tubes, up to 15 mL/125 mm, it streamlines lab workflows effectively. Discover reliable performance at an accessible price point.
Features
- Max Capacity – 6 (up to 16 x 125 mm or 15 mL)
- Fixed Angle Rotor – Separate specimens at a fixed angle of 45 degrees
- Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
- Set and Lock Controls – Switch between preset cycles, or lock to a single cycle with the easy-to-use two-button interface
- Intuitive Lid Lighting – Lid lights are off when the centrifuge is ready, on when running, and flashing when done
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Brushless DC Motor – Years of operation with no routine maintenance
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 64 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimension (W x D x H) - 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight - 12 lbs. (5.4 kg)
- Max. Acceleration Time - 20 Seconds
- Max. Deceleration Time - 20 Seconds
- Factory Setting Range - 1 to 30 Minutes (± 1%)
- Voltage - 95 to 253 VAC
- Frequency - 50/60 Hz
- Max. Power Requirements - 220 Watts
Preset Cycles
Preset 1: 10 min / 3900 RPM / 1600-1850 xg
Preset 2: 15 min / 3800 RPM / 1500 xg
Preset 3: 5 min / 2200 RPM / 500-600 xg
Warranty
2 years (lifetime on rotor)
