Product Family
Dishwashers
Aesthetic
Universale
Installation
Fully-integrated built-in
Commercial width
60 cm
Number of place settings
13
Washing system
Standard
Colour
Black
Energy Efficiency Class
C
DESIGN
The new Smeg dishwasher responds to sophisticated washing needs by interpreting a constant evolution in terms of aesthetics, functionality and energy efficiency.
SILENT PROGRAM
The hydraulic system, the shape of the bottom of the chamber and the use of increasingly high-performance motors means that the noise of the washing cycle is reduced by up to -2 dB when this program is selected.
SELF CLEAN PROGRAM
An automatic program designed for cleaning and maintenance of the machine.
FULL EXPRESS PROGRAM
Fast washing and drying program that takes only 60 minutes. Perfect for everyday use.
EXPRESS 27′ PROGRAM
Designed especially for lightly soiled dishes to be washed immediately after use, the quick program washes in just 27 minutes.
Product Family:Dishwashers
Commercial height:82 cm
Number of place settings:13
Installation:Fully-integrated built-in
Commercial width:60 cm
Kitchen panel:Not supplied
EAN code:8017709306861
AESTHETICS
Colour:Black
Finishing:Black
Aesthetic:Universale
Front panel colour:Black
Door type:Galvanized
LED/display colour:White and blue
Buttons colour:Black
PROGRAMME / FUNCTIONS
N. of programmes:10 1
Soak:Yes
Express 27′:Yes
Full express – 60 minutes:Yes
ECO:Yes
Quiet (-2 dB):Yes
Mix:Yes
Intense:Yes
Hygiene 99,9%:Yes
Self clean:Yes
Delicate:Yes
Crystal:Yes
Washing temperatures:38, 45, 50, 55, 65, 70, 75 °C
OPTIONS
Dry Assist option:Yes
Delay timer option:Up to 24 hours
1/2 load FlexiZone option:Yes
Special programs option:Yes
BASKETS
N° baskets:3, Flexi
Basket colour:Grey
Basket components colour:Grey
Handle:In plastic on upper and lower basket

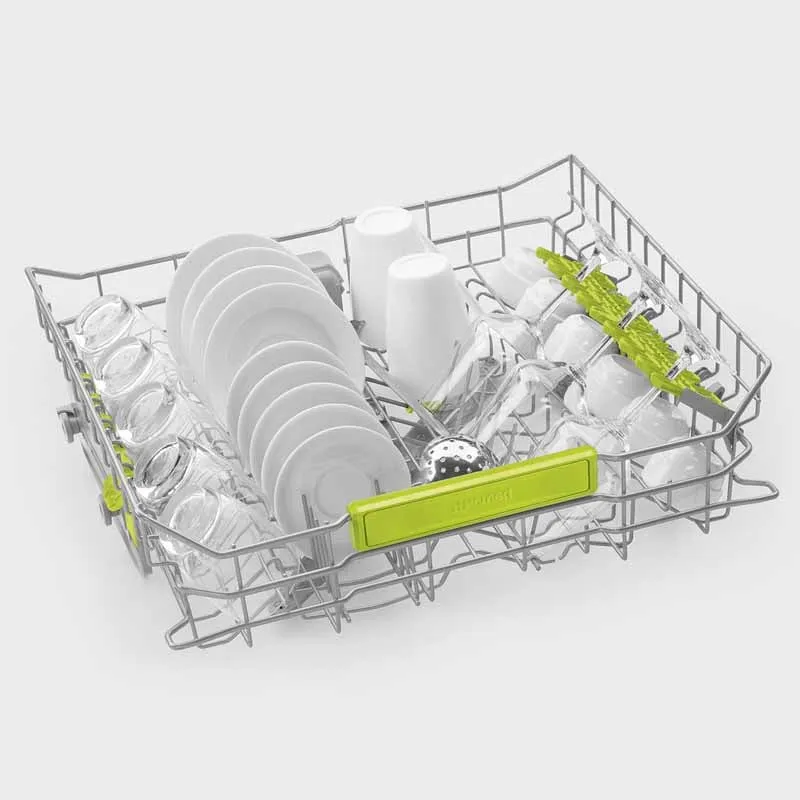

Upper Basket:With central fixed racks
Glass holder:Yes
Height adjustment of the upper basket:On three levels (5 cm)
Lower Basket:With 2 foldable racks
Largest loadable dish in upper basket:19,0 cm
Lower basket with anti-drip inserts:Yes
Largest loadable dish in lower basket:30,0 cm
Colour Inner Components:Green
TECHNICAL FEATURES
Controls:Electronic
Display:Delayed start, Programme time indicator
Door opening system:Yes
Display type:LED display
Salt light indicator:Light
Rinse aid indicator:Light
End of cycle indicator:Acoustic signal
Washing system:Standard
Drying system:Natural condenser drying, with Dry Assist automatic door opening system at the end of the cycle
Motor:Inverter 2.0
Third spray arm:Single
Water softener:With electronic setting
Flood protection system:Total Acquastop
Water supply:Single; cold/hot water max. 60°C – energysave with hot water up to 35%
Max water hardness:100°fH;58°dH
Steam protection:In plastic
Tub material:Stainless steel
Filter:Stainless steel
Concealed heating element:Yes
Min. and max plinth height:100 – 228 mm
Min. and max. frontal panel weight:2 – 9 kg
Hinges:Self balancing with fixed hinges
Adjustable feet:7cm, from 820 to 890 mm
Back feet adjustable from front:Yes
PERFORMANCE / ENERGY LABEL NEW 2019
Energy Efficiency Class:C
Energy consumption [per 100 cycles, based on the eco programme]:73 KWh
Rated capacity (ps):13
Water consumption [per cycle]:12.0 litres
Programme duration:4:10 h:min
Airborne acoustical noise emissions:48 dB(A) re 1 pW
Airborne acoustical noise emission class:C
Energy efficiency Index (EEI):43.8
ELECTRICAL CONNECTION
Connected power:1800 W
Voltage:220-240 V
Type of connection:Single-phase
Frequency (Hz):50 Hz
Power supply cable length:140 cm
FEATURES ATTRIBUTES
Noise level:>= 48 db(A)
LOGISTIC INFORMATION
Dimensions of the product HxWxD (mm):818x598x545
Net weight (kg):42.000 kg
Gross weight (kg):44.000 kg
FR EXTENTION SINGLE GROUP
Country of origin:IT
Packed width:650 mm
Packaged depth:670 mm
Height (mm) packed:890 mm
Dimensions of the packed product (mm):890X650X670
Type of packaging:Shrinkwrap
Packaging composition – paper & cardboard (kg):0.000 kg
Packaging composition – polystyrene (kg):1.142 kg
Packaging composition – wood (kg):0.205 kg
Packaging composition – plastic (kg):0.485 kg
Other accessories:Salt funel
